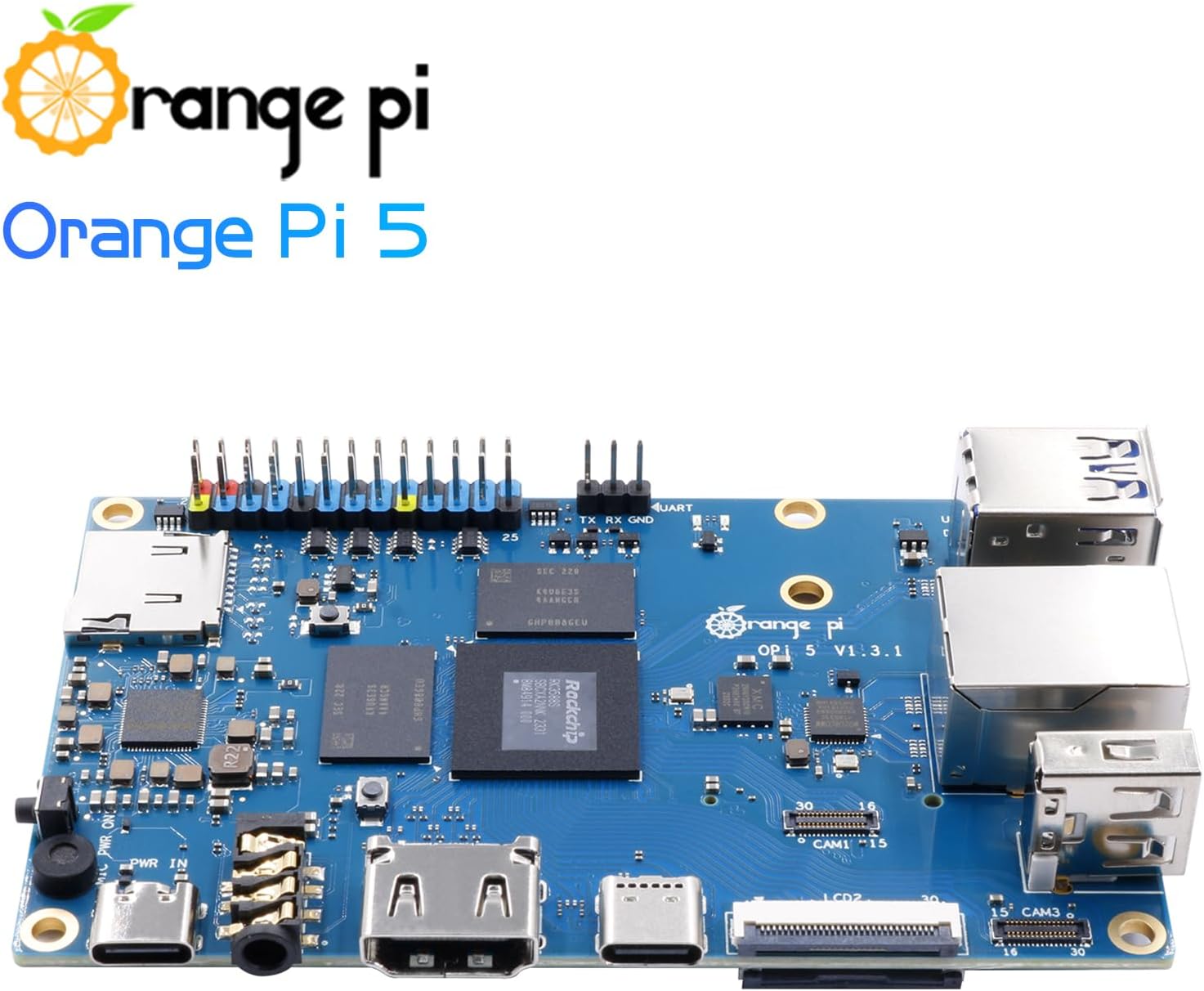

Orange Pi 5 8G Rockchip RK3588S 8 Core 64 Bit Single Board Computer, 2.4GHz Frequency Open Source Development Board Mini PC Desktop Run Orange Pi OS, Android12, Debian11

Product IntroductionMain control chip Rockchip RK3588S (8nm LP process)CPU: 8-core 64-bit processor; Typical large and small core architecture of 4-core Cortex-A76 and 4-core Cortex-A55, the main frequency of the large core is 2.4GHz, and the main frequency of the small core is 1.8GHzGPU:Integrated ARM Mali-G610; Built-in 3D GPU; Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2NPU: Built-in AI accelerator NPU with up to 6 Tops computing power, supports INT4/INT8/INT16 mixed operationPMU: RK806-1RAM: 4GB/8GB/16GB/32GB (LPDDR4/4x)Storage: QSPI Nor FLASH 16MB; MicroSD (TF) Card Slot; PCIe M.2 M-KEY (SSD) SocketUSB: USB3.0*1; USB2.0*2; Type-C (USB3.1)*1Video output: HDMI2.1, up to 8K @60Hz; DP1.4 (DisplayPort), DP1.4 is multiplexed with USB3.1 port, and shared port with Type-C; 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60HzCamera: MIPI CSI 4Lane; 2 * MIPI D-PHY RX 4LaneAudio: CODEC- ES8388; 3.5mm headphone jack audio input/output; Input: Onboard MIC; HDMI 2.1 eARCEthernet: 10/100/1000Mbps Ethernet (YT8531B )Expansion port: 26Pin double row of pins, supports up to: 2 * UART; 3 * PWM; 2 * IIC; 1 * SPI; 1 * CAN; 1 * PWR_ON; 15 *GPIO, these functions are multiplexed and cannot be supported at the same timePCIe M.2 M-KEY Socket: supports PCIe WIFI6+BT 5.0; Support SSDKeys: 1* MaskROM key, 1*RECOVERY, 1*Reset keyPower supply: Support DC power supply 5V @ 4A;LED: Power Indicator: Red; Status Indicator: GreenDebug: 3Pin debug serial port (UART)Supported operating systems: Orange Pi OS, Android12, Debian11Appearance specification introductionProduct Size: 100mm*62mmWeight: 46g

• Orange Pi 5 8GB uses Rockchip RK3588S new generation 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with 8GB (LPDDR4/4x), and up to 8K display processing capability.
• Orange Pi 5 8G Single Board Computer provides abundant interfaces, including HDMI output, GPIO interface, M.2 PCIe2.0, Type-C, Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc. 8K video output.
• Orange Pi 5 8gb microcontroller open source board mini computer can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
• Orange Pi 5 Mini PC supports Orange Pi OS, the official operating system developed by Orange Pi, as well as Android12 and Debian11
• Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch.Pretty much anything else, because Orange Pi is open source.
• Orange Pi 5 onboard M.2 PCIe 2.0 interface, supporting access to NVMe SSD hard drives, increasing massive data storage space, and meeting the needs of fast read/write and mass storage At the same time, it supports HDMI 2.1 8K video output, USB-C (DP1.4), and dual MIPI D-PHY video output, which can achieve multi-screen display and support three MIPI interface camera inputs.
